General |
|
| DIMENSION |

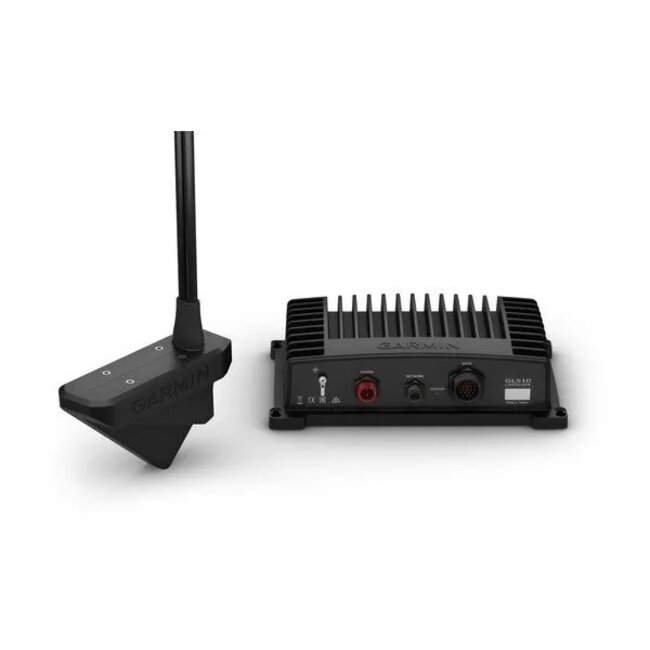

GLS 10 sonar black box: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS32 transducer: 5.4” x 3.8” x 1.8” (13.7 x 9.7 x 4.6 cm) |
|---|---|
| WEIGHT |
GLS 10 sonar black box: 4.3 lbs (2.0 kg); LVS32 transducer: 1.9 lbs (0.9 kg) |
| WATERPROOF | IPX7 |
| TRANSDUCER BEAMWIDTH | 20° x 135° |
| TRANSDUCER CABLE LENGTH | 20 ft |
| TRANSDUCER NUMBER OF PINS | 21 |
| TEMPERATURE RANGE |
GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS32 Transducer: Operating: 0 C to 40 C |
Sonar Features & Specifications |
|
| FREQUENCY | 530 - 1,100 kHz |
|---|---|
| MAXIMUM DEPTH | Down and Forward: 200’ (61.0 m) |
| SONAR TYPE | Live |
| TARGET SEPARATION @100' | 22" |
Connections |
|
| GARMIN MARINE NETWORK PORTS |
1 (small connector) |
|---|---|
